TIG / GTAW Series

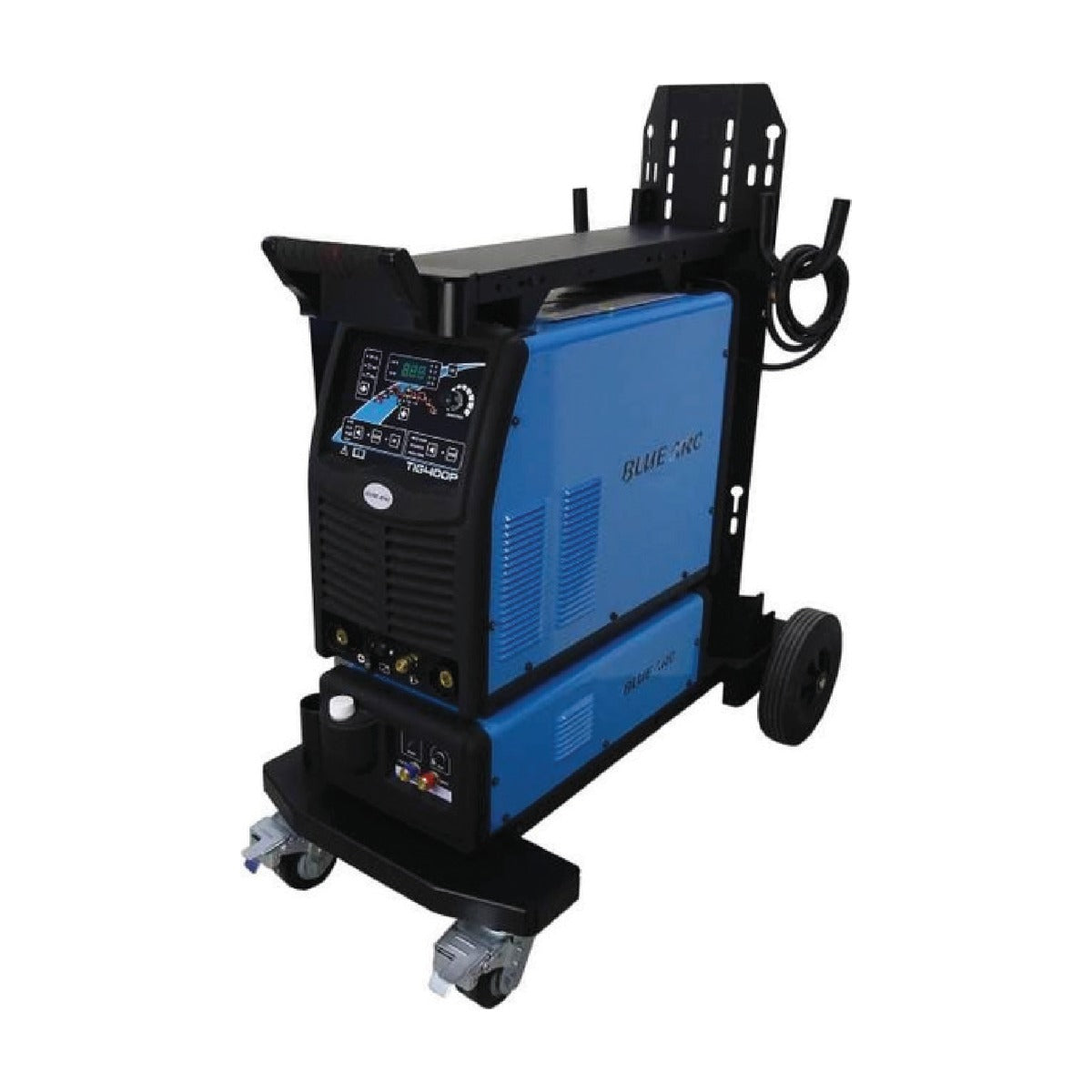

The Blue Arc TIG 400 Pulse is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance. This technologically advanced inverter with a digital panel allows for...
Couldn't load pickup availability
Inverter power source, Trolley, Water cooler, Operating instructions
Mains plug, Electrodes, TIG torch consumables, Shielding gas, Filler wire, TIG torch and adapter, Gas regulator, Earth cable, PPE (welding helmet, gloves, etc.)
The Blue Arc TIG 400 Pulse is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance. This technologically advanced inverter with a digital panel allows for software upgrades and provides 8-channel automatic storage of the welding parameters. This modular design TIG welding system includes the trolley and water cooler as standard.
| Input voltage | AC 380V - 50/60 Hz |
|---|---|
| MMA range | 30 - 400 A | TIG range: 5 - 400 A |
| No-load voltage | 74 V |
| Power factor | 0.96 |
| Input power | 17.9 kVA |
| Duty cycle | MMA 400A @ 30% | TIG 400A @ 35% |
| Efficiency | 85% |
| Protection class | IP21S/F |
| Dimensions (L x W x H) | 760 x 360 x 585 mm |
| Weight | 30 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
