TIG / GTAW Series
The Blue Arc TIG 200 is a compact single-phase DC TIG and MMA inverter built on a single-PCB design for easy testing and service. High frequency inverter technology delivers a stable, easy-starting...
Couldn't load pickup availability
Inverter power source, Earth return lead, Operating instructions
MMA leads, Mains plug, Electrodes, TIG torch, Gas regulator, Earth lead, PPE (welding helmet, gloves, etc.)

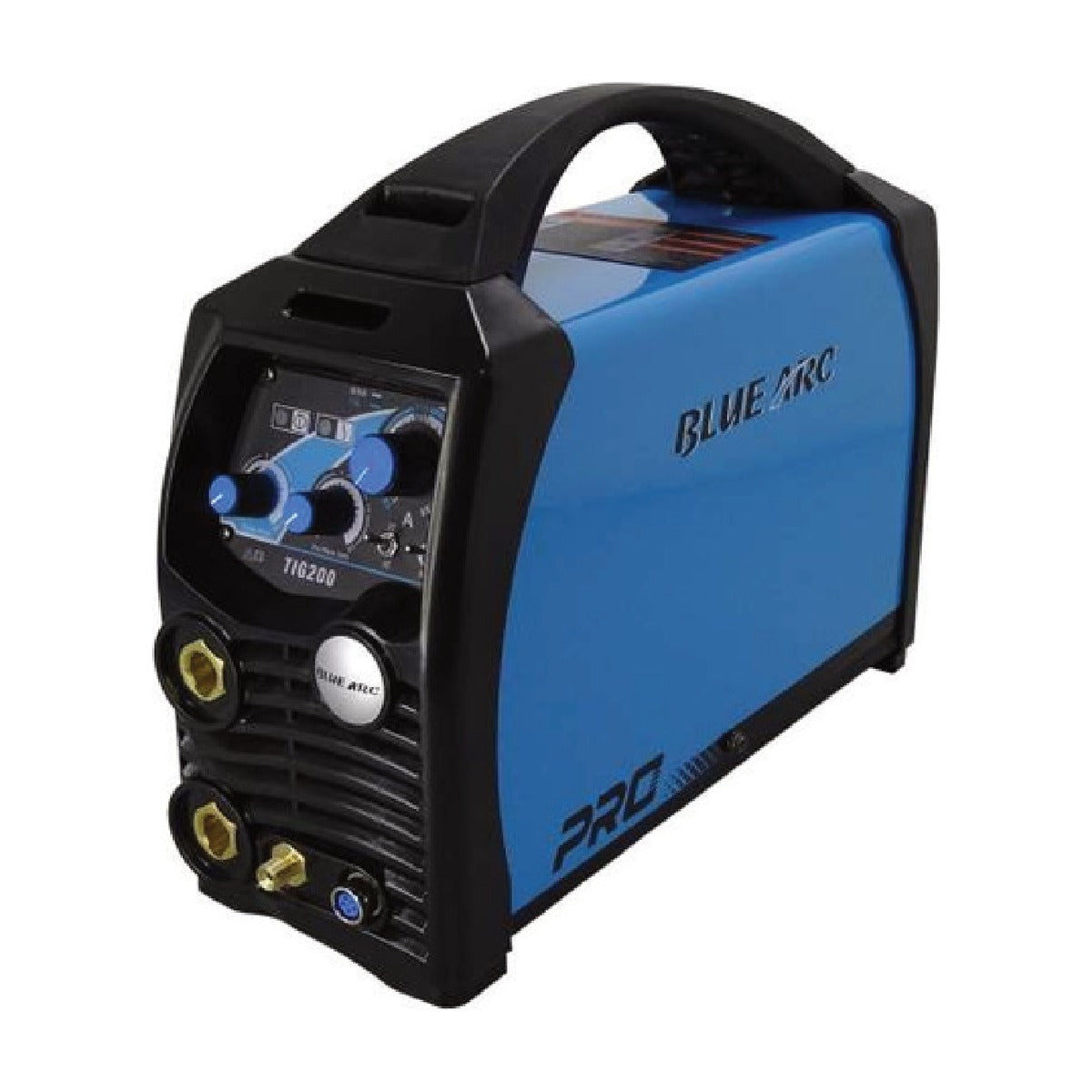

The Blue Arc TIG 200 is a compact single-phase DC TIG and MMA inverter built on a single-PCB design for easy testing and service. High frequency inverter technology delivers a stable, easy-starting arc with built-in hot start and arc force, making it well suited to light fabrication and maintenance work.
| Input voltage | AC 230V - 50/60 Hz |
|---|---|
| TIG range | 10 - 200 A | MMA range: 10 - 180 A |
| No-load voltage | 60 V |
| Power factor | 0.7 |
| Effective current (Ieff) | 18.9 A |
| Input power | 8.2 kVA |
| Duty cycle | 200A @ 35% |
| Efficiency | 85% |
| Protection class | IP21S/F |
| Dimensions (L x W x H) | 565 x 135 x 277 mm |
| Weight | 6.12 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
