Multiprocess Welding Machine

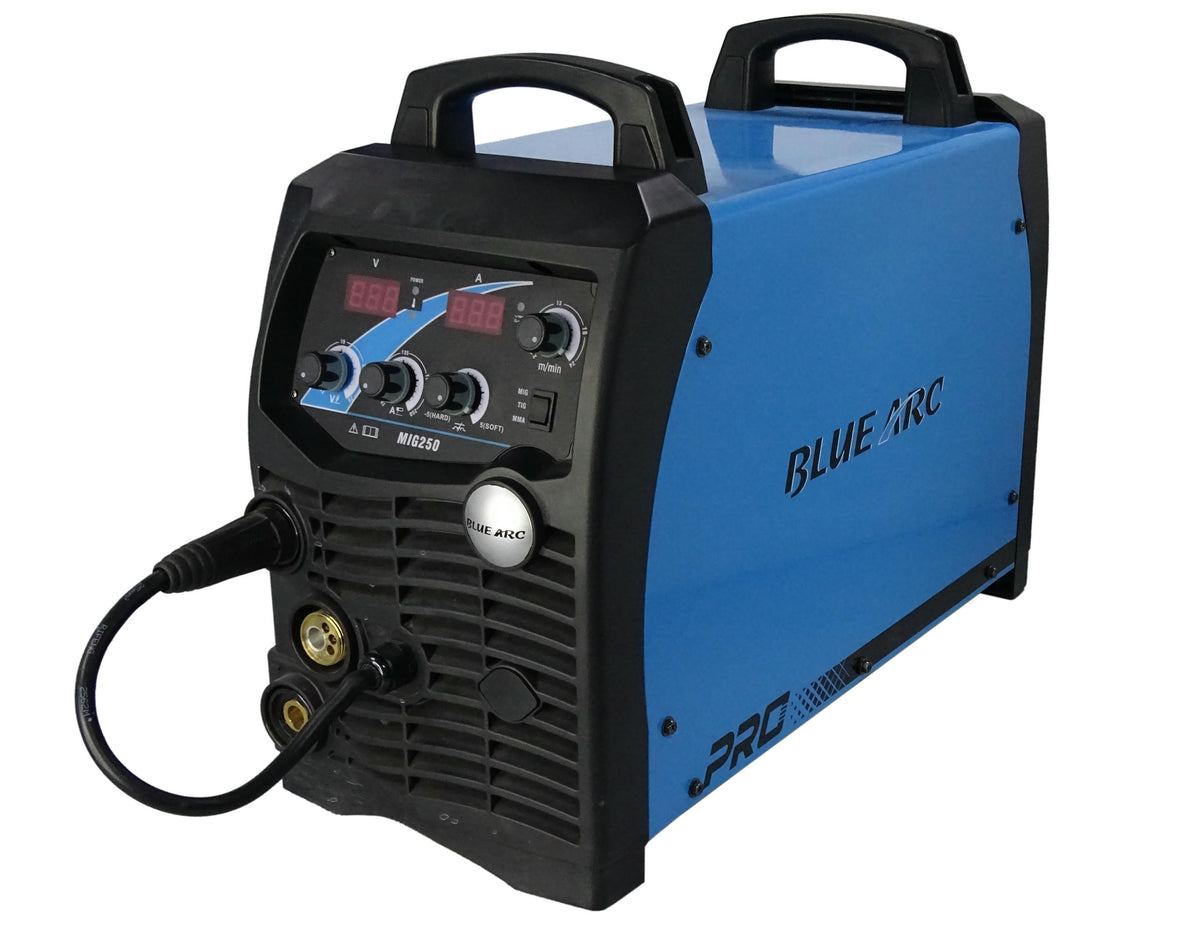

Blue Arc MIG 250 Multi Process Inverter

Model MIG 250

The Blue Arc MIG 250 Compact is equipped with powerful IGBT components, multi-process capabilities, digital meters and a single PCB for improved efficiency and maintenance.This compact and portable synergic inverter offers excellent...

Current15 - 250 A
InputAC 230V - 50/60 Hz
Duty cycle250A @ 35%
Weight26.8 kg

Overview

The Blue Arc MIG 250 Compact is equipped with powerful IGBT components, multi-process capabilities, digital meters and a single PCB for improved efficiency and maintenance.

This compact and portable synergic inverter offers excellent welding characteristics and consistently reliable performance for both MIG/MAG and MMA welding processes.

Key Features

Advanced synergic control (pulse parameters are selected automatically)
IGBT MIG/MMA/Lift TIG multi process
Self-adaptive crater filling function
Digital amp & voltmeter
Stable arc and reliable performance
Working frequency is beyond the audio range, greatly reducing noise pollution
Easy arc starting, less spatter, stable current and excellent weld bead shaping
Suitable for 0.6 / 0.8 / 1.0 mm welding wire
Compact size, lightweight and modern design
Burn back control
Ideal for production, site work & maintenance

Specifications

Blue Arc MIG 250 Multi Process Inverter technical specifications
Model	MIG 250
Input voltage	AC 230V - 50/60 Hz
Current range	15 - 250 A
No-load voltage	56 V
Power factor	0.7
Input power	12.6 kVA
Duty cycle	250A @ 35%
Efficiency	85%
Protection class	IP21S/F
Dimensions (L x W x H)	627 x 267 x 452 mm
Weight	26.8 kg
Wire spool	300mm spool, 0.6 - 1.0 mm wire
