MIG / GMAW Series

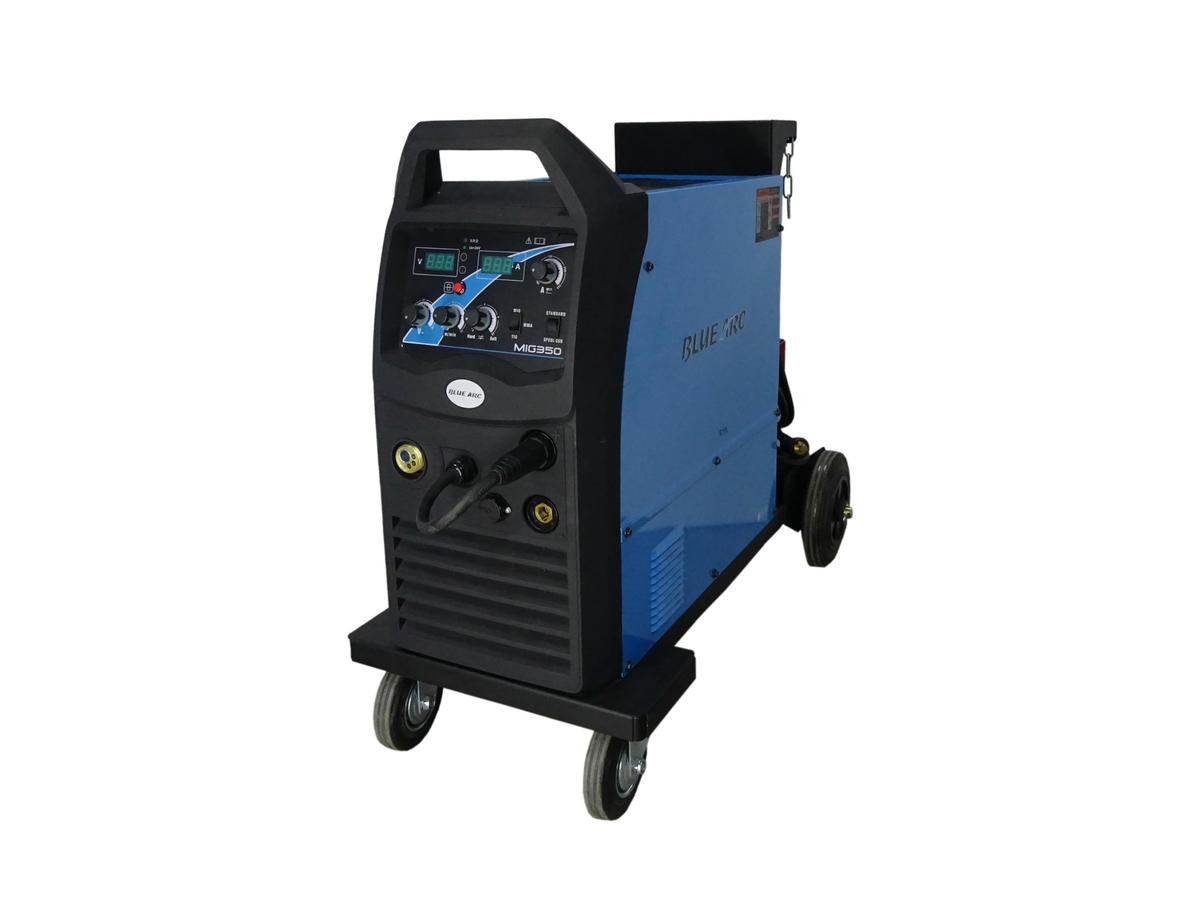

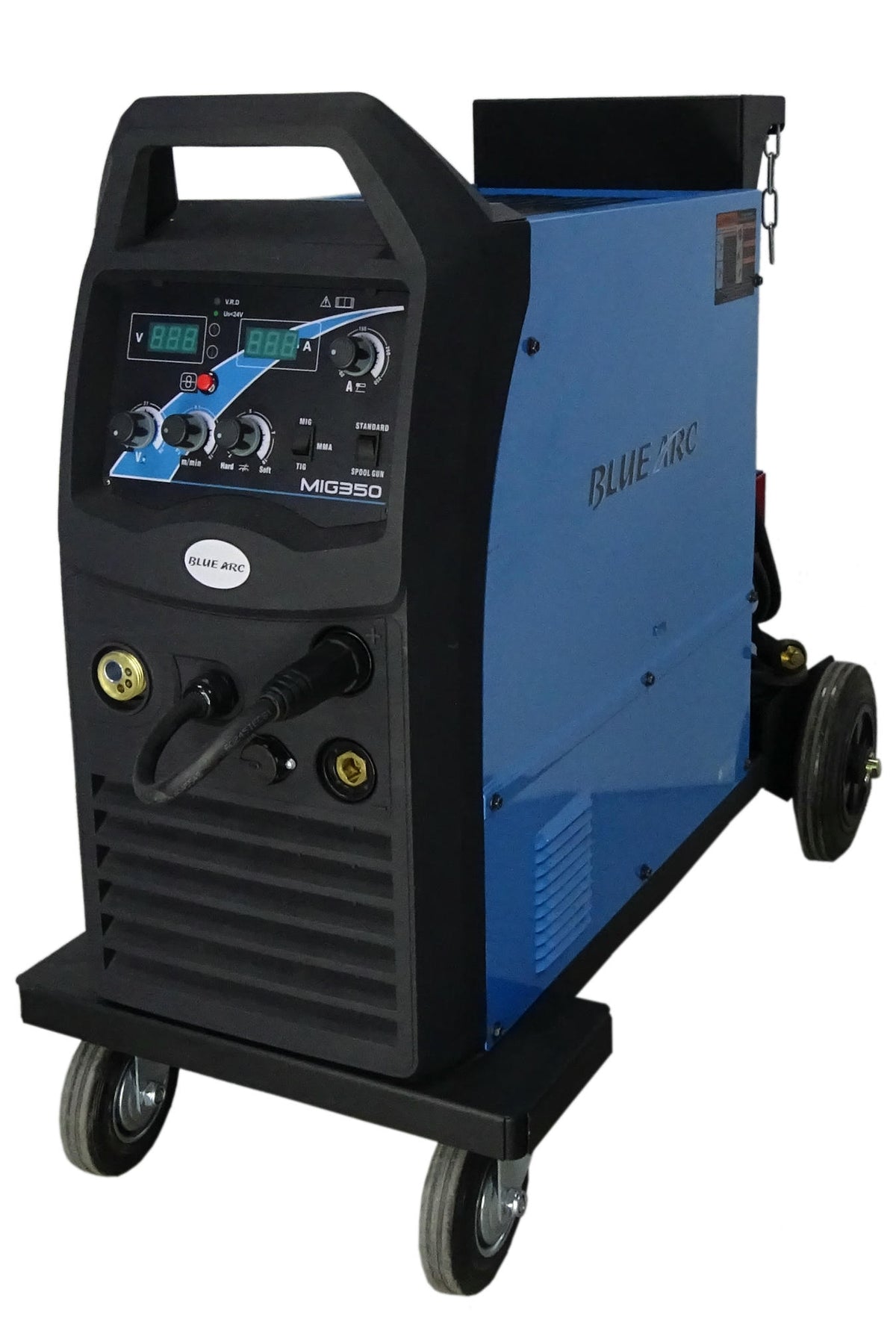

Blue Arc MIG 350 Inverter

Model MIG350SKU BA-MIG350

CurrentMMA 20 - 350 A | MIG 50 - 350 A
InputAC 400V - 50/60 Hz
Duty cycle350A @ 40%
Weight52 kg

In the box

Inverter power source, Operating instructions

Not included (available from local suppliers)

MIG welding torch, Earth return lead, Gas hose and regulator, Mains plug, Shielding gas, Welding wire, Replacement torch consumables, PPE (welding helmet, gloves, etc.)

View full details

Overview

The Blue Arc MIG 350 is equipped with powerful IGBT components, a digital A/V display and multi-process capabilities. The inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles. This high quality three-phase machine delivers an impressive 350 amps at 40% duty cycle, making the MIG 350 an excellent choice for medium duty fabrication work.

Key Features

Multi-function compact MIG/MAG, MMA and Lift TIG
Suitable for flux cored circuitry
Advanced control circuitry
Digital A/V display
4 roll wire feed drive
High duty cycle
Suitable for 0.8 / 1.0 / 1.2 mm wires
Stable and reliable arc with minimal spatter
Burn back control
Spool gun interface (spool gun optional)
Wire inching feature
VRD on MMA setting

Specifications

Blue Arc MIG 350 Inverter technical specifications
Input voltage	AC 400V - 50/60 Hz
Welding voltage range	15 - 38 V
No-load voltage	65 V
MMA range	20 - 350 A \| MIG range: 50 - 350 A
Input power	15 kVA
Power factor	0.93
Duty cycle	350A @ 40%
Efficiency	85%
Spool	300 mm, wire 0.8 - 1.2 mm
Protection class	IP21S/F
Dimensions (L x W x H)	900 x 450 x 750 mm
Weight	52 kg
