TIG / GTAW Series
The Blue Arc TIG 200P AC/DC mini is a technologically advanced single-phase inverter power source offering an ultra-portable solution. The innovative and user-friendly control panel offers a digital weld cycle, welding modes...
Couldn't load pickup availability
Inverter power source, Operating instructions
MMA leads, Mains plug, Electrodes, TIG torch, Gas regulator, Earth lead, PPE (welding helmet, gloves, etc.)

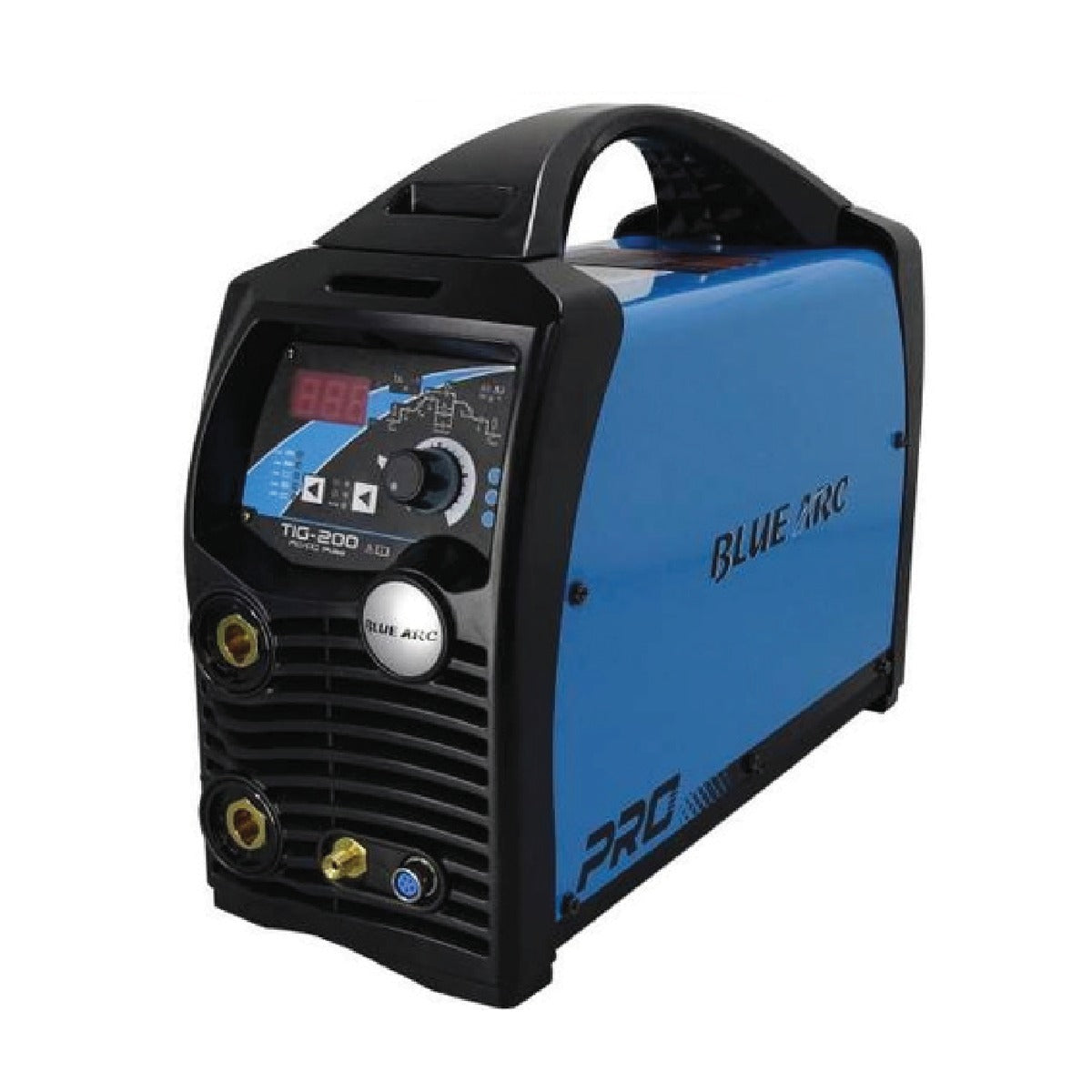

The Blue Arc TIG 200P AC/DC mini is a technologically advanced single-phase inverter power source offering an ultra-portable solution. The innovative and user-friendly control panel offers a digital weld cycle, welding modes and a program memory feature for storing different welding parameters. The excellent technical characteristics of the 200 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
| Input voltage | AC 230V - 50/60 Hz |
|---|---|
| MMA range | 10 - 160 A | TIG range: 5 - 200 A |
| No-load voltage | 56 V |
| Power factor | 0.7 |
| Fuse | 16 Amps |
| Duty cycle | MMA 160A @ 30% | TIG 200A @ 25% |
| Efficiency | 85% |
| Protection class | IP21/B |
| Dimensions (L x W x H) | 435 x 160 x 340 mm |
| Weight | 9 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
