TIG / GTAW Series
The premium Blue Arc TIG 315 Pulse AC/DC welding inverter is a technologically advanced three-phase multi-wave power source suitable for medium to high production cycles. The innovative and user-friendly digital panel allows...
Couldn't load pickup availability
AC/DC TIG welding inverter power source, Water cooling unit, Trolley
TIG torch, Gas regulator, MMA lead, Earth lead

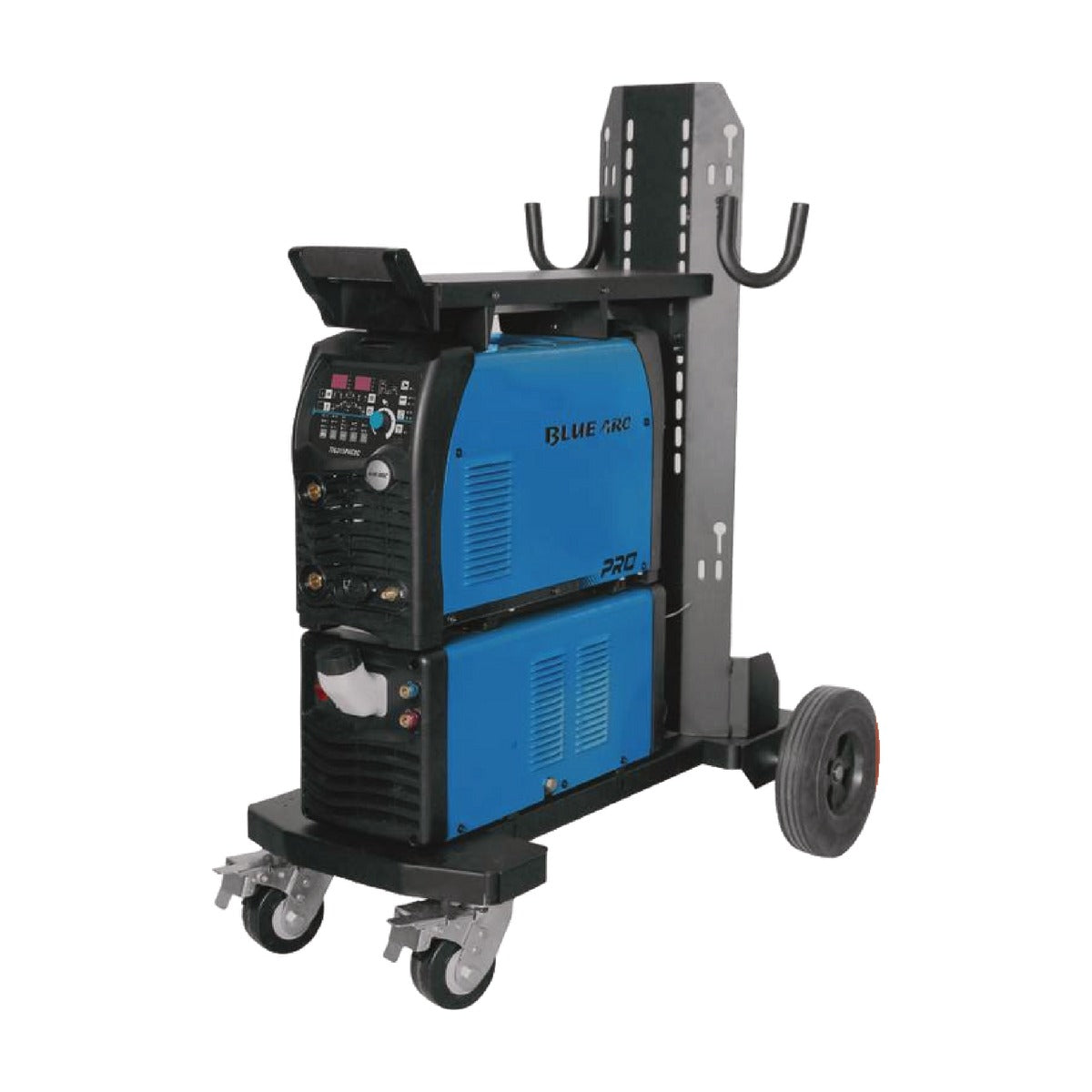

The premium Blue Arc TIG 315 Pulse AC/DC welding inverter is a technologically advanced three-phase multi-wave power source suitable for medium to high production cycles. The innovative and user-friendly digital panel allows full control of the welding parameters. The excellent technical characteristics of the TIG 315P make it an ideal choice for professionally skilled TIG welders that require precise control and reliable performance.
| Input voltage | AC 380V +/-15% - 50/60 Hz |
|---|---|
| TIG range | 10 - 315 A | MMA range: 10 - 270 A |
| No-load voltage | 73 V (12.4 V with VRD) |
| Effective current (Ieff) | TIG 10 | MMA 12.4 |
| Input power | 14 kVA |
| Duty cycle | TIG 315A @ 30% | MMA 270A @ 30% |
| Efficiency | 85% |
| Protection class | IP21S/F |
| Dimensions (L x W x H) | 556 x 224 x 405 mm |
| Weight | 25.5 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
