Plasma Air Cutter (PAC)
The Blue Arc 45PFC, equipped with PWM technology and high-powered IGBT components, is the perfect solution for cutting low carbon steel, stainless steel and aluminium. This user-friendly and highly portable inverter offers...
Couldn't load pickup availability
Inverter power source, Plasma torch, Earth return lead, Operating instructions
Replacement plasma torch consumables

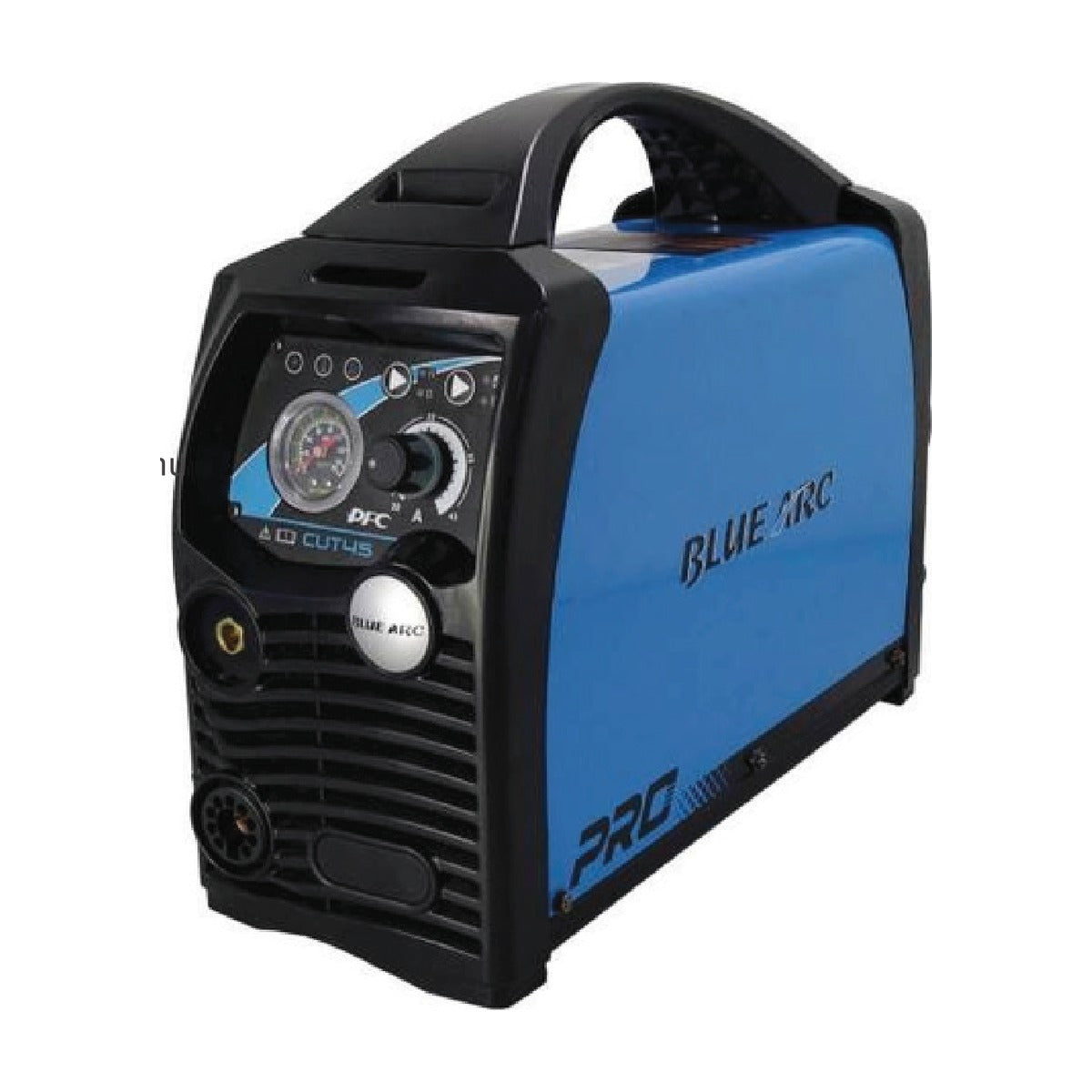

The Blue Arc 45PFC, equipped with PWM technology and high-powered IGBT components, is the perfect solution for cutting low carbon steel, stainless steel and aluminium. This user-friendly and highly portable inverter offers smooth, fast and precise cutting on material up to 15 mm, and a maximum of 20 mm where a severance cut is required. Another outstanding feature of this high specification model is PFC (Power Factor Correction), which provides substantial energy saving benefits for the user.
| Input voltage | AC 230V - 50/60 Hz |
|---|---|
| Current range | 20 - 45 A |
| Cutting capacity | clean cut 15 mm | rough (severance) cut 20 mm |
| Power factor | 0.99 |
| Input power | 5.1 kVA |
| Duty cycle | 45A @ 35% |
| Air requirement | 170 Ltr/min @ 4.5 bar |
| Protection class | IP21S/F |
| Dimensions (L x W x H) | 439 x 165 x 328 mm |
| Weight | 9.2 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
