Plasma Air Cutter (PAC)

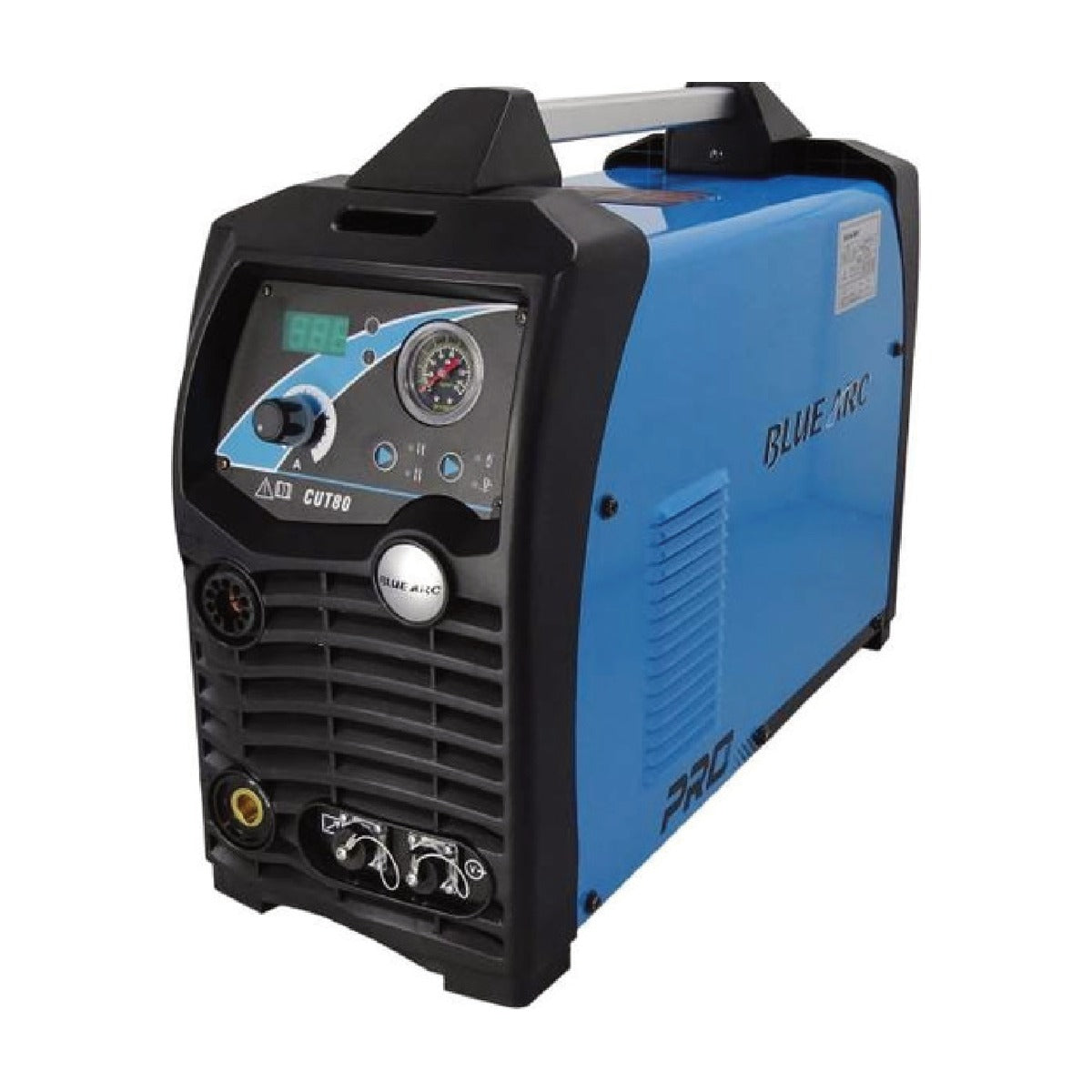

The Blue Arc CUT 80 is a three-phase IGBT plasma cutting inverter with non-HF ignition and a 6 metre Euro-connection hand torch. It delivers smooth, precise clean cuts up to 25 mm...
Couldn't load pickup availability
Inverter power source, Earth return lead, Operating instructions, Plasma torch
Replacement plasma torch consumables
The Blue Arc CUT 80 is a three-phase IGBT plasma cutting inverter with non-HF ignition and a 6 metre Euro-connection hand torch. It delivers smooth, precise clean cuts up to 25 mm and severance cuts to 30 mm, with variable cutting control and a clear LED display.
| Input voltage | AC 380V - 50/60 Hz |
|---|---|
| Current range | 20 - 80 A |
| Cutting capacity | clean cut 25 mm | severance cut 30 mm |
| Power factor | 0.7 |
| Effective current (Ieff) | 14 A |
| Input power | 15.8 kVA |
| Duty cycle | 80A @ 40% |
| Air requirement | 200 Ltr/min @ 5 bar (65 PSI) |
| Protection class | IP21S/F |
| Dimensions (L x W x H) | 555 x 210 x 415 mm |
| Weight | 15 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
