Plasma Air Cutter (PAC)
The Blue Arc Cut 160 is a professional high-end cutting inverter equipped with the latest IGBT technology. This technologically advanced plasma inverter is extremely user-friendly and offers consistently reliable cutting performance. The...
Couldn't load pickup availability
Inverter power source, Earth return lead, Operating instructions, Plasma torch
Replacement plasma torch consumables

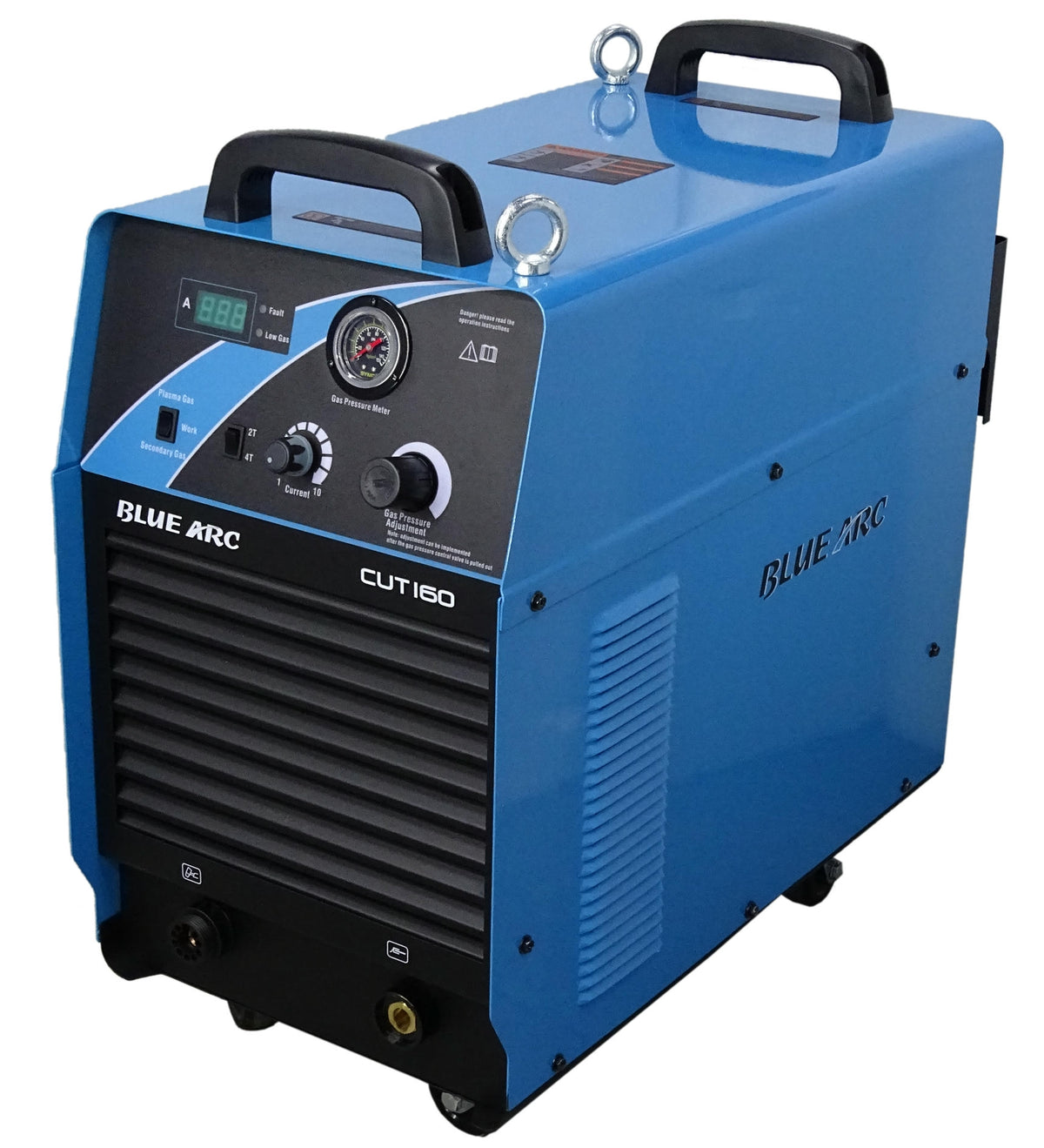

The Blue Arc Cut 160 is a professional high-end cutting inverter equipped with the latest IGBT technology. This technologically advanced plasma inverter is extremely user-friendly and offers consistently reliable cutting performance. The machine provides variable cutting control that allows the operator to produce precise, smooth cuts.
| Input voltage | AC 415V - 50/60 Hz |
|---|---|
| Current range | 30 - 160 A |
| Cutting capacity | clean cut 45 mm | severance cut 50 mm |
| Power factor | 0.99 |
| Input power | 29.2 kVA |
| Duty cycle | 160A @ 60% |
| Air requirement | 220 Ltr/min @ 5 bar |
| Protection class | IP21/F |
| Dimensions (L x W x H) | 676 x 333 x 712 mm |
| Weight | 55 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
