Multiprocess Series

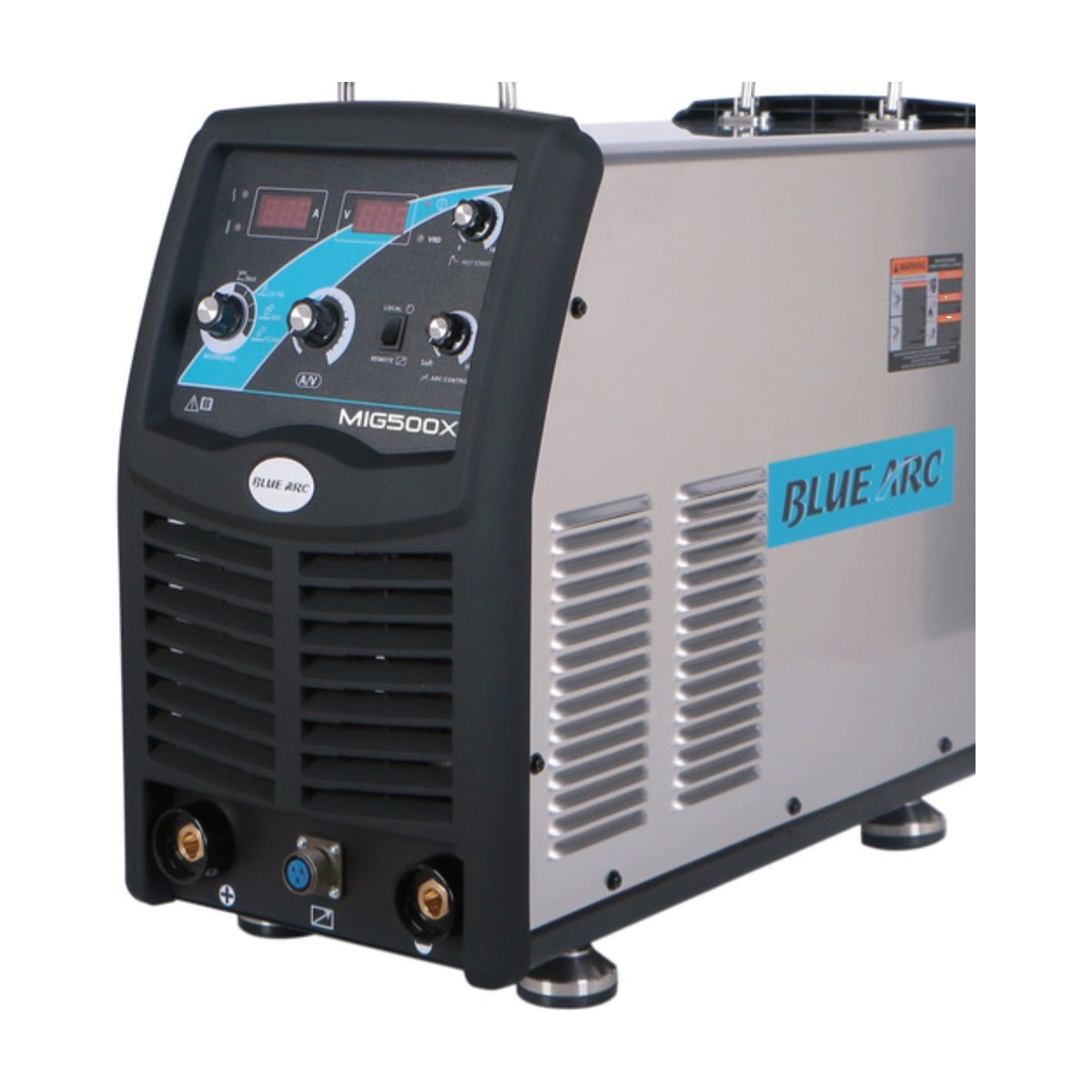

Blue Arc MIG 500X Multi Process Inverter

Model MIG500XSKU BA-MIG500X

The Blue Arc MIG500X is equipped with powerful capabilities offering excellent welding characteristics and rugged, reliable performance. The machine also has self-diagnostic protection systems that provide extreme reliability.Key FeaturesIGBT multi-process inverterDigital control...

CurrentMIG 60 - 500 A | MMA 30 - 500 A | TIG 30 - 500 A
Input3~AC 400V +/-15% - 50/60 Hz
Duty cycle50%
Weight47 (power source) kg

Overview

Key Features

IGBT multi-process inverter
Digital control system with 32-bit efficient processor
High reliability: independent air duct, sealed cabin design for the main power part, three-proofing design for the control board — highly dust-proof and water-proof
Self-inspection function: over-current, input under-voltage and over-heat protection
Built-in connector for program upgrade
Available for different kinds of welding: Stick, Lift-TIG, MIG, FCAW
Remote control function
VRD function
Excellent Lift-TIG function
Stick function — if electrode and workpiece stick for 2s, current automatically drops to 30A to avoid electrode burnout

Specifications

Blue Arc MIG 500X Multi Process Inverter technical specifications
Input voltage	3~AC 400V +/-15% - 50/60 Hz
MIG range	60 - 500 A \| MMA range: 30 - 500 A \| TIG range: 30 - 500 A
No-load voltage	80 V (TIG: 12 V)
Input power	24.2 kVA
Effective current (Ieff)	28.7 A
Duty cycle	50%
Efficiency	90%
Protection class	IP23
Dimensions (L x W x H)	785 x 330 x 660 mm (power source)
Weight	47 kg (power source)

Compatible accessories

Blue Arc BAFEED-VS Portable Wire Feeder

Dhs. 0.00 AED

Blue Arc Water Cooled TIG Torch

Dhs. 0.00 AED

Blue Arc Air Cooled TIG Torch

Dhs. 0.00 AED

Blue Arc Air Cooled TIG Torch with Valve

Dhs. 0.00 AED

Blue Arc Electrode Holder EH-200A

Dhs. 0.00 AED

Blue Arc Electrode Holder EH-500A

Dhs. 0.00 AED

Blue Arc Earth Clamp EC-300A

Dhs. 0.00 AED

Blue Arc Earth Clamp EC-500A

Dhs. 0.00 AED

View all 9 in Accessories & Guns →

Warranty & support

3 Years Warranty

3 Years Warranty as shown on the Blue Arc brochure.

Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.

Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778

Need help choosing or want a quote? Talk to our team about this model, availability and delivery.
