MIG / GMAW Series
The Blue Arc MIG 500 is equipped with powerful IGBT components, digital meters and multi-process capabilities, offering excellent welding characteristics and rugged, reliable performance. This three-phase inverter offers synergic curves for common...
Couldn't load pickup availability
Inverter power source, 4 roll wire feed unit, Interconnecting cable, Operating instructions
MIG welding torch, Earth return lead, Gas hose and regulator, Mains plug, Trolley, Water cooler, PPE (welding helmet, gloves, etc.)

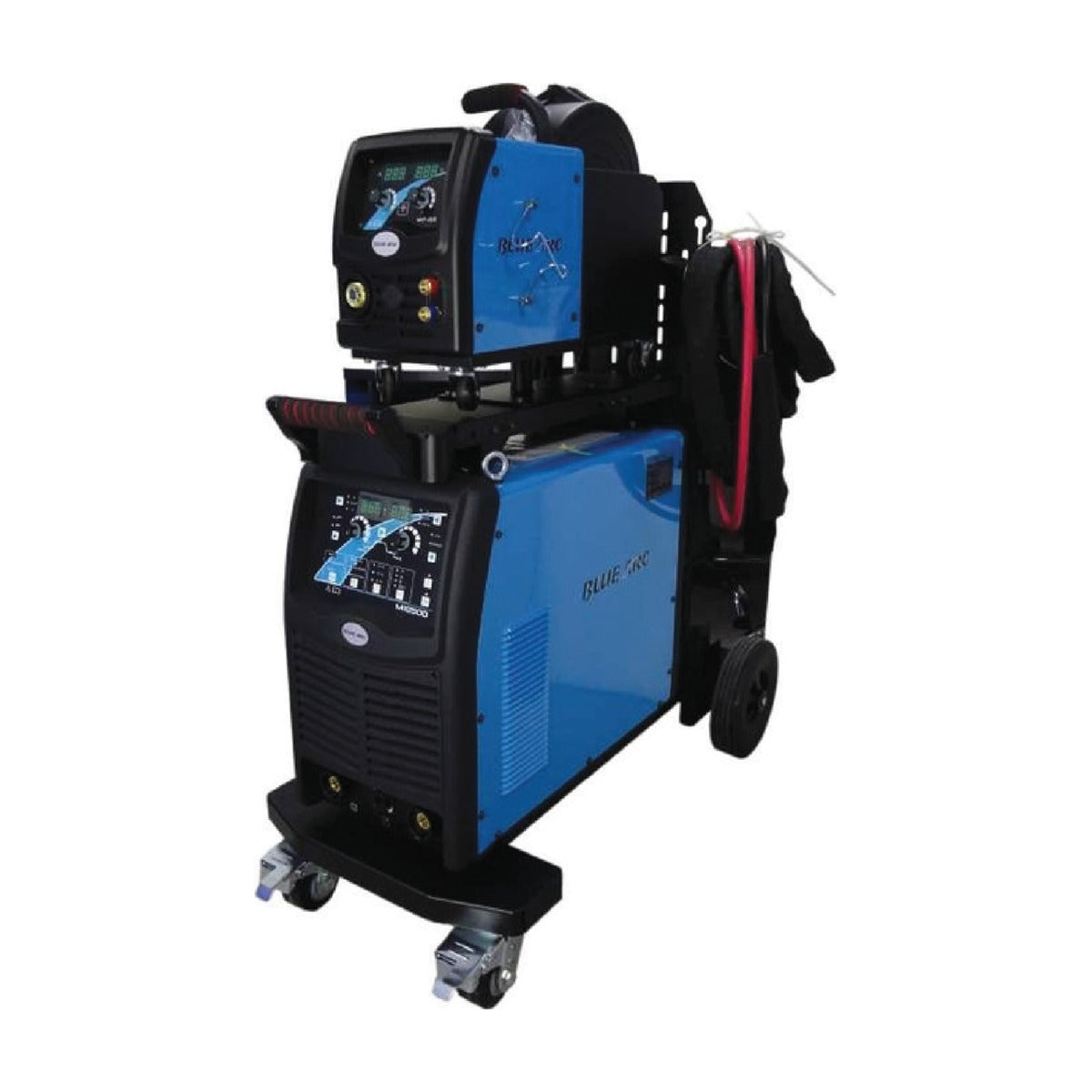

The Blue Arc MIG 500 is equipped with powerful IGBT components, digital meters and multi-process capabilities, offering excellent welding characteristics and rugged, reliable performance. This three-phase inverter offers synergic curves for common materials and wires. The machine also has self-diagnostic protection systems that provide extreme reliability.
| Input voltage | AC 415V - 50/60 Hz |
|---|---|
| Welding voltage range | 12 - 40 V |
| Current range | 10 - 500 A |
| No-load voltage | 60 V |
| Power factor | 0.92 |
| Fuse | 60 A |
| Duty cycle | 500A @ 60% |
| Wire feed speed | 1.5 - 22 m/min |
| Spool | 300 mm, wire 0.8 - 1.6 mm |
| Protection class | IP21S/F |
| Dimensions (L x W x H) | 815 x 440 x 803 mm |
| Weight | 55 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
