Stick / SMAW Series

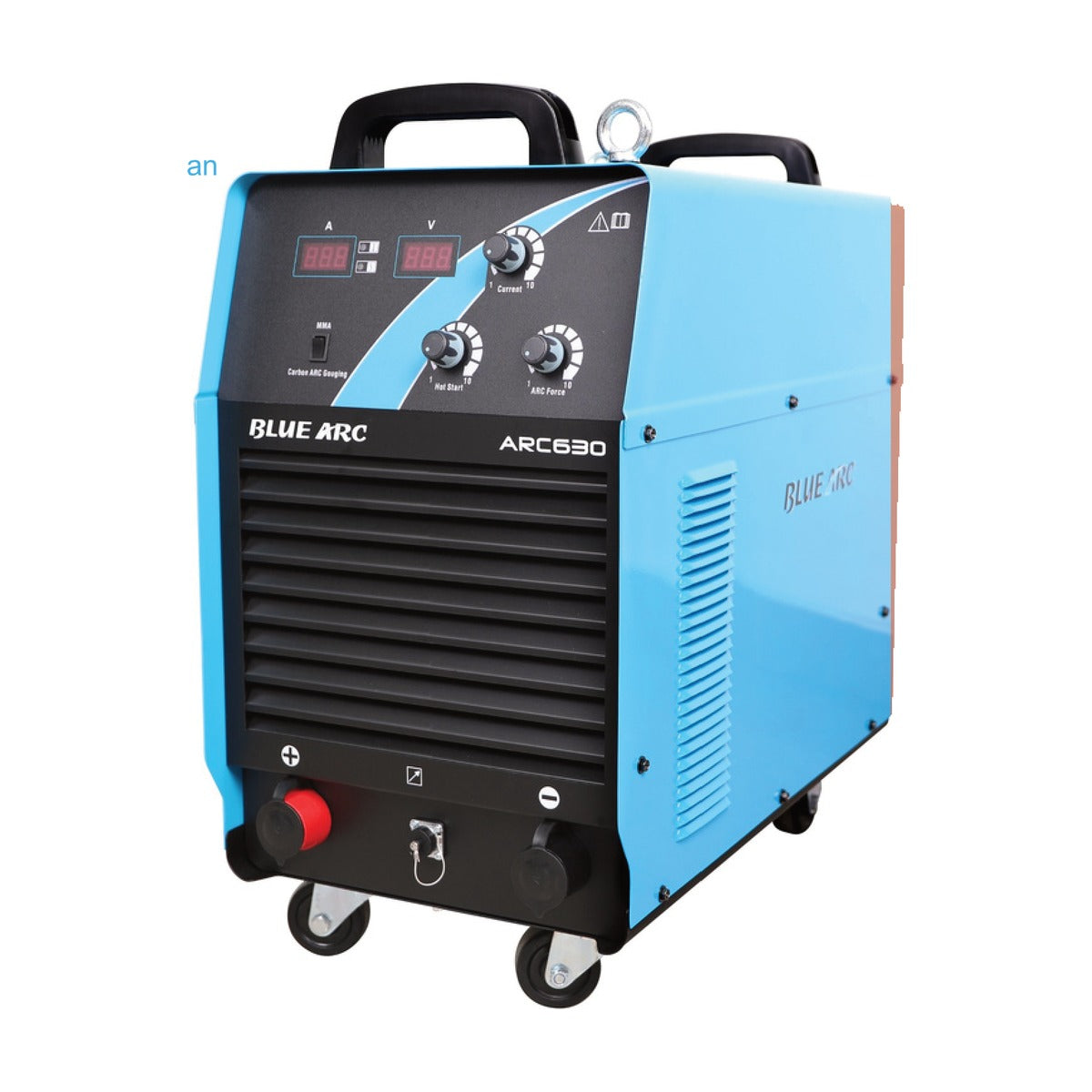

Blue Arc ARC 630 Heavy-Duty Welding Inverter

Blue Arc ARC 630 Heavy-Duty Welding Inverter

Model ARC 630SKU BA-ARC630

The Blue Arc ARC 630 welding inverter is equipped with the latest IGBT technology and digital meters. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The...

  • Current50 - 630 A
  • Input3~AC 400V +/-15% - 50/60 Hz
  • Duty cycle60%
  • Weight55 kg
WhatsApp
View full details

Overview

The Blue Arc ARC 630 welding inverter is equipped with the latest IGBT technology and digital meters. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The ARC 630 also offers lift TIG functionality, making it an ideal choice for industrial applications.

Key Features

  • IGBT module inverter technology
  • Soft switching technology

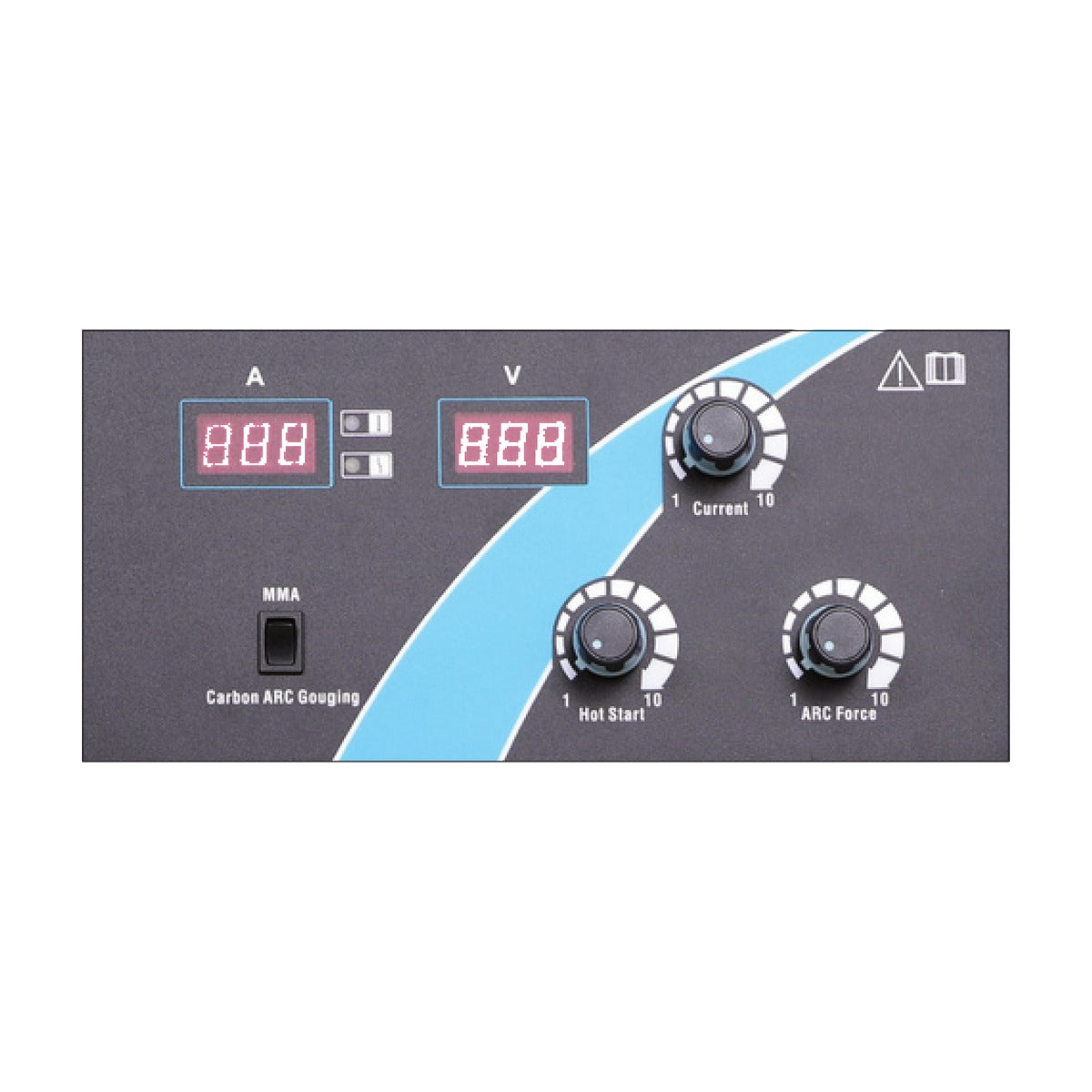

  • Easy and simple operation panel
  • Optional cable remote control for convenient remote operation
  • Excellent welding quality, optimum arc dynamic characteristics
  • Suitable for all kinds of electrodes
  • Carbon arc gouging mode

Specifications

Input voltage3~AC 400V +/-15% - 50/60 Hz
Current range50 - 630 A
No-load voltage85 V
Input power35.5 kVA
Duty cycle60%
Efficiency85%
Power factor0.91 (TIG: 13.1)
Protection classIP21S
Dimensions (L x W x H)661 x 340 x 625 mm
Weight55 kg

Download the full spec sheet (PDF)

Compatible accessories

View all 9 in Accessories & Guns →

Warranty & support

3 Years Warranty

3 Years Warranty as shown on the Blue Arc brochure.

Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.

Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
