Stick / SMAW Series
The Blue Arc ARC280D is a robust industrial welder specially designed for a wide input voltage range, which makes it suitable for many industrial applications. Powered by Jasic technology.Key FeaturesLatest IGBT technology...
Couldn't load pickup availability

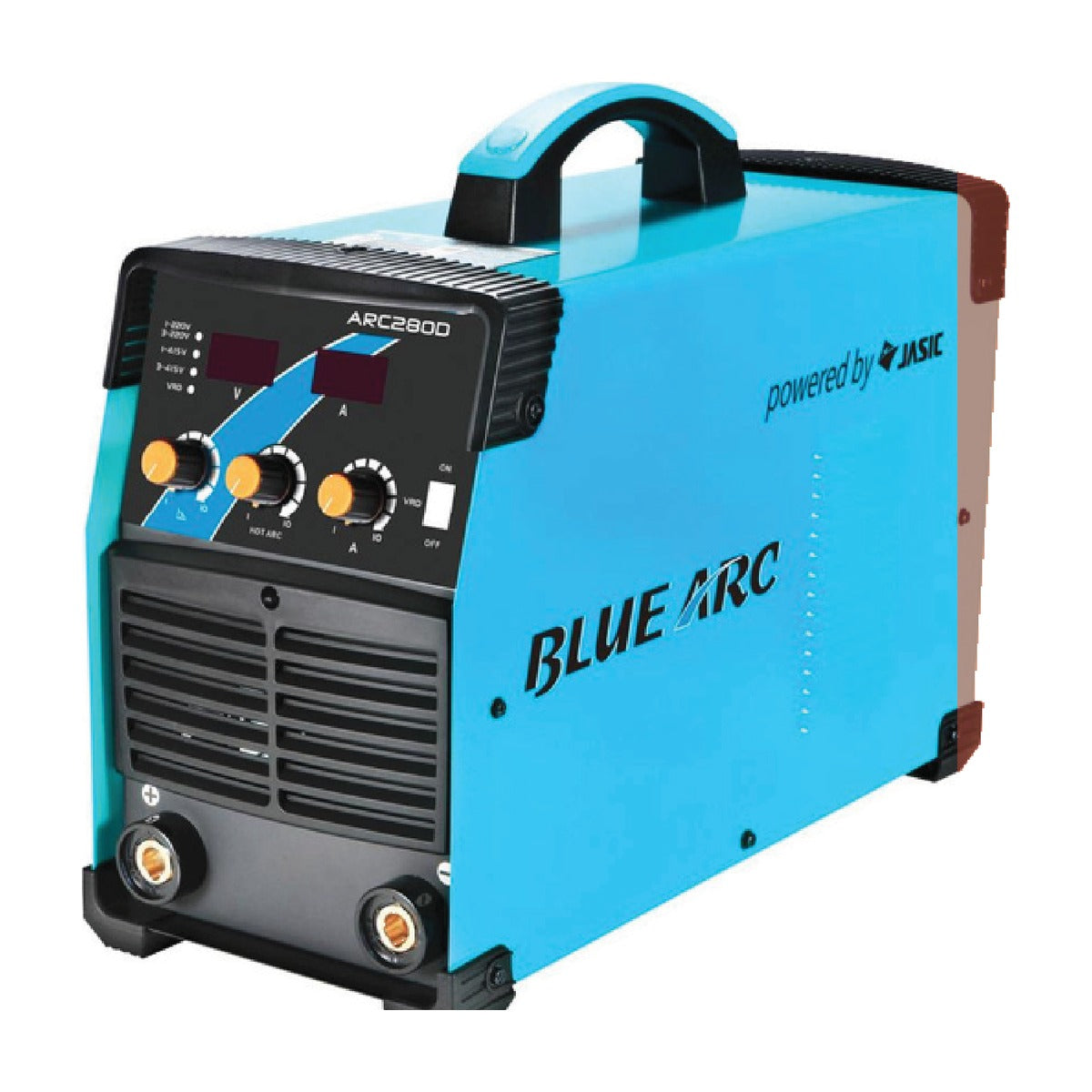

The Blue Arc ARC280D is a robust industrial welder specially designed for a wide input voltage range, which makes it suitable for many industrial applications. Powered by Jasic technology.
| Input voltage | 1PH AC230V / 1PH AC380V / 3PH AC380V |
|---|---|
| Current range | 40-220 A (1PH 230V) | 40-200 A (1PH 380V) | 40-280 A (3PH 380V) |
| No-load voltage | 80 V (1PH 230V) | 70 V (1PH 380V / 3PH 380V) |
| Input power | 10.6 kVA (1PH 230V) | 9.4 kVA (1PH 380V) | 13.1 kVA (3PH 380V) |
| Duty cycle | 40% (1PH AC230V) | 30% (1PH AC380V / 3PH AC380V) |
| Efficiency | 85% |
| Power factor | 0.73 |
| Protection class | IP21S |
| Dimensions (L x W x H) | 500 x 220 x 360 mm |
| Weight | 13.6 kg |
3 Years Warranty
3 Years Warranty as shown on the Blue Arc brochure.
Local service and technical support through Mona Trading LLC - service centres in Dubai and Abu Dhabi.
Dubai: +971 4 282 1451 | Abu Dhabi: +971 2 5555 778
