Stick / SMAW Series

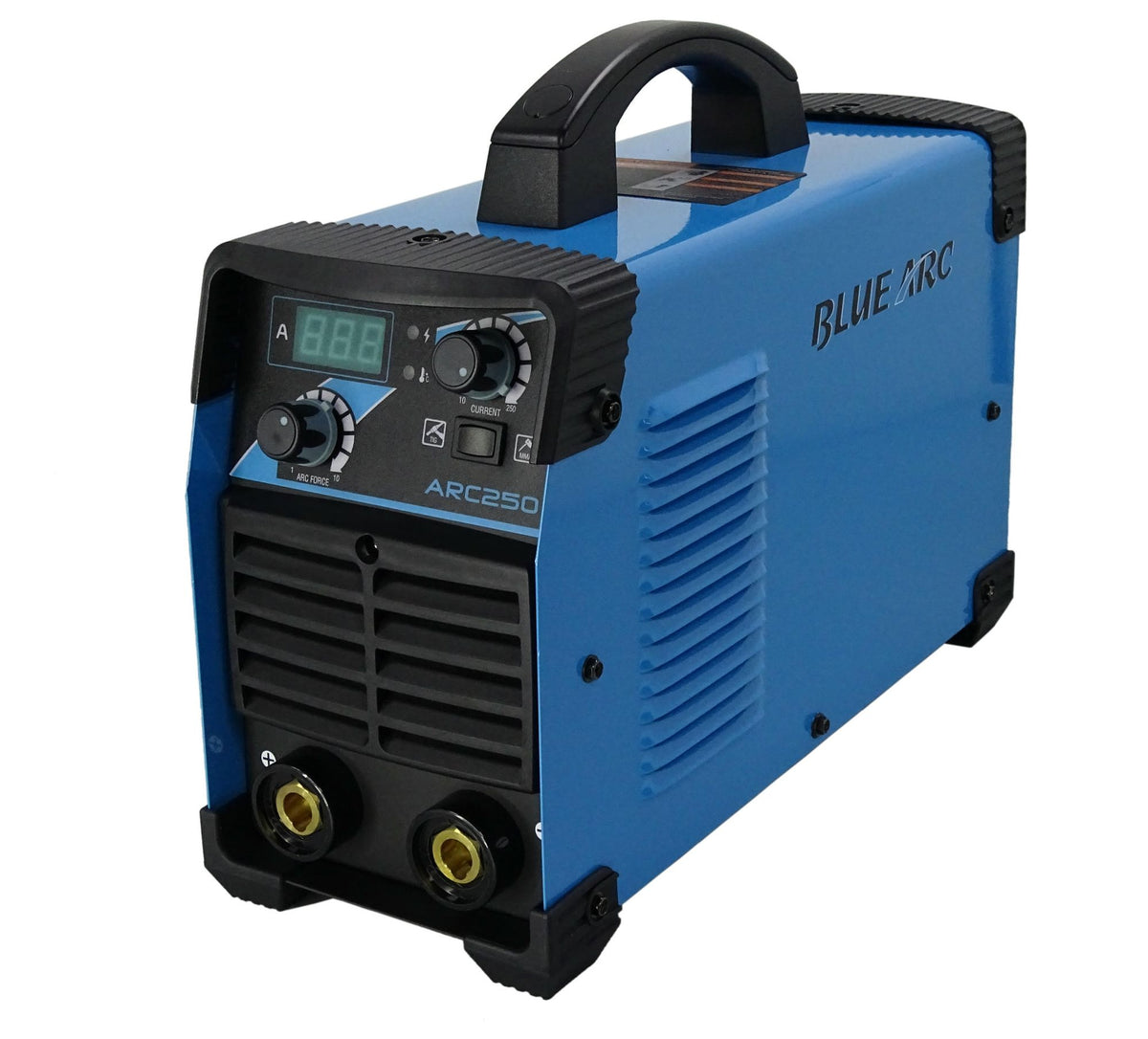

Blue Arc ARC 250 MMA Welding Inverter

Model ARC 250SKU BA-ARC250

Current20 – 250 A
InputAC 230V — 50/60 Hz
Duty cycle250A @ 60%
Weight9.6 kg

In the box

Inverter power source, Operating instructions

Not included (available from local suppliers)

Main plug, Electrodes, Cable set, PPE (welding helmet, gloves, etc.)

View full details

Overview

The Blue Arc ARC 250 MMA welding inverter is equipped with the latest IGBT technology. This technologically advanced inverter is extremely user friendly and offers reliable and consistent arc performance. The ARC 250 also offers lift TIG functionality, making it an ideal choice for maintenance and light fabrication.

Key Features

IGBT inverter technology
Anti-Stick, adjustable Arc-Force, Hot Start, Lift TIG
40 kHz inverter frequency — high efficiency
Compact size, lightweight and modern design
Easy arc starting, minimal spatter
Auto-compensation for voltage fluctuation
High quality tactile rubber finish to mouldings and handle

Specifications

Blue Arc ARC 250 MMA Welding Inverter technical specifications
Input voltage	AC 230V — 50/60 Hz
Current range	20 – 250 A
No-load voltage	67 V
Power factor	0.7
Input power	12.3 kVA
Duty cycle	250A @ 60%
Efficiency	85%
Protection class	IP21/F
Dimensions (L x W x H)	430 x 168 x 312 mm
Weight	9.6 kg
