Stick / SMAW Series

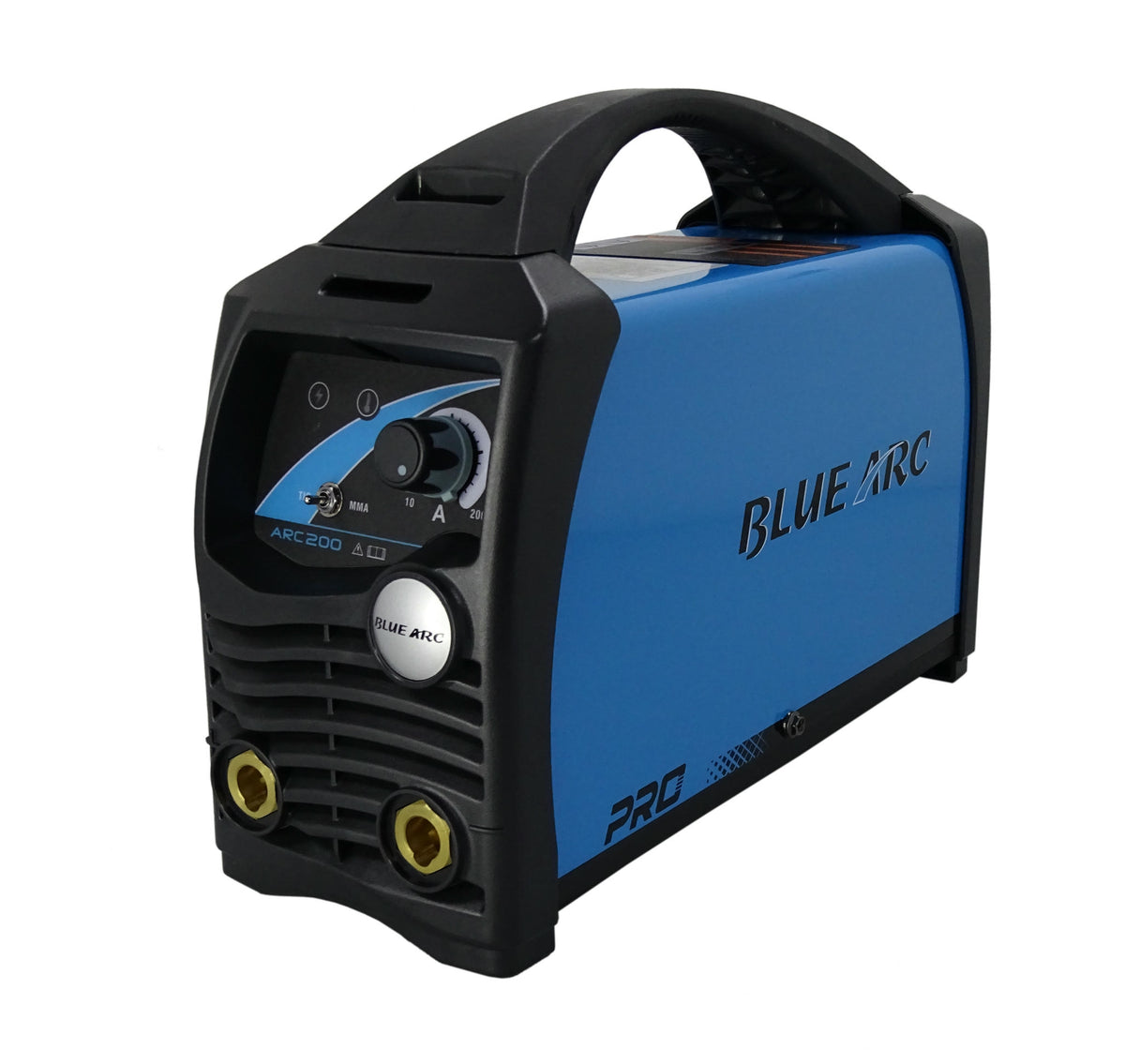

Blue Arc ARC 200 MMA Welding Inverter

Model ARC 200SKU BA-ARC200

Current10 – 200 A
InputAC 230V — 50/60 Hz
Duty cycle200A @ 30%
Weight5.2 kg

In the box

Inverter power source, Operating instructions, Carry case, Cable set

Not included (available from local suppliers)

Main plug, Electrodes, Shielding gas, Filler wire, PPE (welding helmet, gloves, etc.)

View full details

Overview

The Blue Arc ARC 200 MMA welding inverter is equipped with the latest IGBT technology and a singular PCB for improved efficiency and maintenance. This technologically advanced inverter is extremely user friendly and offers reliable and consistent arc performance. The ARC 200 also offers lift TIG functionality, making it an ideal choice for maintenance and light fabrication.

Key Features

IGBT inverter technology
Stick, Arc-Force, Hot Start, Lift TIG
40 kHz inverter frequency — high efficiency
Compact size, lightweight and modern design
Easy arc starting, minimal spatter
Auto-compensation for voltage fluctuation
High quality tactile rubber finish to mouldings and handle

Specifications

Blue Arc ARC 200 MMA Welding Inverter technical specifications
Input voltage	AC 230V — 50/60 Hz
Current range	10 – 200 A
No-load voltage	63 V
Power factor	0.7
Input power	9.4 kVA
Duty cycle	200A @ 30%
Efficiency	85%
Protection class	IP21/F
Dimensions (L x W x H)	351 x 130 x 250 mm
Weight	5.2 kg
